Ultra-large industrial complexes—think of sprawling petrochemical refineries, massive automotive manufacturing hubs, gigantic steel mills, and expansive semiconductor fabrication plants—are essentially small cities that never sleep. Their energy demands are staggering, often drawing more electricity from the grid than entire residential towns. Today, these mega-facilities are also actively seeking to reduce their carbon footprint by integrating Sustainable Solar Power Solutions right on site, creating vast solar carports or utilizing adjacent land to generate clean energy. Whether the power comes from a massive solar array or the national high-voltage grid, distributing it safely and efficiently across hundreds of acres of heavy machinery requires an incredibly robust and intelligently designed electrical backbone. Designing power cables for these ultra-large industrial complexes is an exercise in managing extreme scale, massive capacity, and unrelenting resilience.
The Challenge of Scale and Distance
When an industrial facility spans several square kilometers, the standard rules of electrical wiring no longer apply. Simply running thick, low-voltage wires from a central power room to every machine on the floor is both physically impossible and financially disastrous.
The Voltage Drop Problem
The fundamental enemy of long-distance power transmission is electrical resistance. All conductive materials, even the purest copper, offer some resistance to the flow of electrons. Over long distances, this resistance causes the voltage to drop, meaning the electrical “pressure” pushing the power diminishes. If voltage drops too significantly, distant heavy machinery will struggle to operate, motors will overheat and burn out, and sensitive electronic controls will glitch. To push massive power over long distances without losing it all to voltage drop, engineers must step up the voltage.
The Medium Voltage Distribution Ring Solution
To beat the distance problem and deliver massive power efficiently, engineers design a Medium Voltage (MV) distribution network. Instead of low voltage, they transmit power at levels typically between 11kV and 33kV. This high-voltage power is sent through heavy-duty MV cables that ring the entire perimeter of the complex. This MV backbone pushes bulk power highly efficiently to localized, smaller substations scattered strategically around the facility. Once the power reaches the local substation right next to the assembly line, it is finally stepped down through a transformer to the usable low voltages (like 400V or 480V) required by the machines. This keeps the low-voltage cable runs extremely short, virtually eliminating voltage drop issues.
Designing for the Worst-Case Scenario
Industrial environments are incredibly hostile to delicate electrical infrastructure. The cables chosen for these mega-complexes cannot simply be standard commercial building wires; they must be ruggedized to survive the brutal daily realities of heavy manufacturing.
Mechanical Abuse and Constant Vibration
Cables routed through active factory floors are subjected to a continuous assault. They endure relentless vibration from massive stamping presses, the risk of impact from heavy forklifts, and the constant tension of automated robotic systems. To survive, heavy-duty armoring is absolutely mandatory. Cables are wrapped in a protective layer of galvanized steel wire armor (SWA) or corrugated steel tape. This creates a hard, crush-resistant physical shell that protects the delicate internal copper conductors and insulation from being severed by a dropped tool or a moving vehicle.
Chemical Warfare and Environmental Hazards
In petrochemical plants, food processing facilities, or metal plating factories, the air and the ground are filled with hazards. Cables are routinely exposed to caustic acids, corrosive cleaning solvents, high-pressure steam, and oily mists. Standard PVC insulation will quickly swell, melt, or become brittle and crack in these conditions, exposing live wires. Designers must meticulously specify specialized outer jackets—such as Polyurethane (PUR), Chlorinated Polyethylene (CPE), or even continuous lead sheaths—that act as impenetrable chemical barriers, ensuring the cable’s internal integrity remains pristine despite the toxic environment outside.
The Absolute Necessity of Redundancy and Uptime
In an ultra-large complex, the cost of downtime is calculated not in thousands, but in millions of dollars per hour. If a critical assembly line stops because of a cable failure, the financial impact is catastrophic.
Ring Topologies for Fail-Safe Power
To guarantee uptime, engineers never rely on a single point of failure. Instead of a single straight line of cables feeding the plant, the main power feeds are designed in a “ring” or loop topology. The MV cables travel from the main intake, connect to every substation in a circle, and return to the start. If a cable is accidentally severed by a rogue backhoe digging a trench on the east side of the plant, sophisticated switchgear instantly isolates the break and pushes power backward around the west side of the ring. The factories continue operating without a single second of blackout.
Sourcing for Unshakeable Reliability

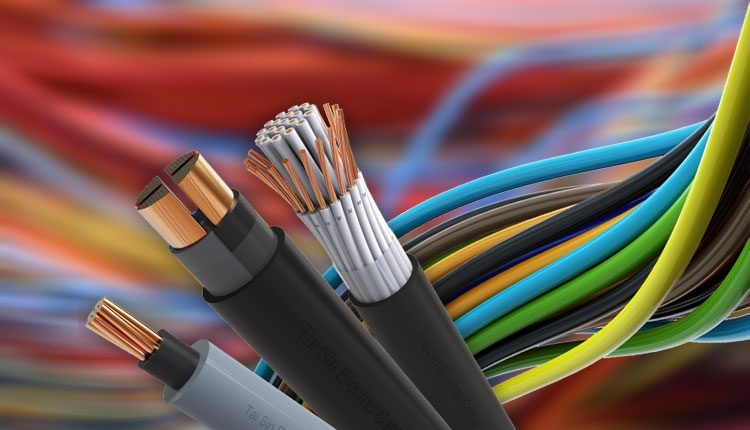

Building a network this critical requires materials you can trust blindly. A single microscopic void in the insulation of a 33kV cable will eventually lead to a catastrophic electrical blowout. Facility developers and electrical contractors rely on a premier Cable Manufacturer & Supplier in the UAE to provide highly tested, zero-defect medium and low voltage cables. These top-tier manufacturers utilize pristine raw materials, perform advanced partial-discharge testing on every meter of cable, and guarantee decades of uninterrupted service, providing plant managers with the peace of mind they need to run 24/7 operations.
Conclusion: The Silent Workhorses of the Economy
The true scale of an ultra-large industrial complex isn’t just measured by the size of its buildings or the number of people it employs; it’s measured in megawatts of constant, throbbing power. The complex cable networks buried deep beneath the concrete slabs, suspended in massive overhead trays, and snaking through robotic cells are the silent workhorses that make global mass production possible. By engineering for incredibly high capacity, extreme environmental durability, and fail-safe network redundancy, electrical designers ensure these industrial giants stay powered, productive, and profitable for decades to come.
Your Industrial Cabling Questions Answered (FAQs)
- What exactly is a Medium Voltage (MV) ring main, and why is it used?
A Medium Voltage ring main is a continuous loop of high-voltage power cables (usually 11kV to 33kV) that completely circles an industrial site, connecting multiple local substations along the way. Because it forms a closed loop, power can travel in two different directions to reach any substation. This means a single cable break or maintenance operation won’t cut power to the factories, ensuring maximum uptime. - Why do long cable runs cause voltage drop, and why is that bad?
All conductive materials, including pure copper, have some natural electrical resistance. The longer the cable, the more total resistance the electricity faces as it travels. This resistance converts a portion of the electrical energy into waste heat, causing the actual voltage available at the end of the cable to be lower than what started at the source. If voltage drops too low, heavy motors will draw too much current to compensate, causing them to overheat and fail prematurely. - How do engineers protect factory cables from degrading when exposed to oil and grease?
Standard plastics like PVC absorb oil like a sponge, which makes them swell, soften, and eventually break down, exposing the live wires. Cables installed in oily environments (like machine shops or automotive plants) use special, highly engineered jacket materials like Polyurethane (PUR) or specialized synthetic rubber compounds that are chemically inert and resistant to industrial lubricants. - What does “armoring” a cable mean, and when is it necessary?
Armoring involves wrapping the sensitive inner core of the cable with a tough, protective layer of metal—usually tightly wound galvanized steel wires (SWA) or overlapped corrugated steel tape. This creates a hard physical shell that protects the cable from being crushed, sliced, or stretched. It is absolutely necessary for cables buried directly in rocky ground, or those routed through heavy industrial areas where vehicle impact is a constant risk. - Why can’t I just use really thick low-voltage cables instead of installing a complex medium-voltage system?
While you could theoretically use massive low-voltage cables to reduce resistance, the physical size, weight, and cost of copper required to carry enough power over a long distance at low voltage would be astronomical. The cables would be too thick to bend or install practically. Medium voltage systems allow you to push massive amounts of power through much thinner, more manageable, and more cost-effective cables.
